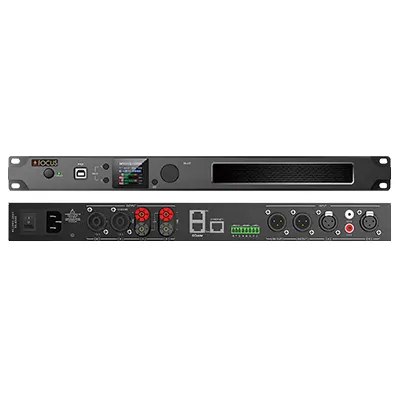

ZENITH – FDSA-23 DSP amplifier with Dante

Elevate your audio experience with the Focus Audio ZENITH series FDSA-23 DSP Audio Amplifier, engineered to deliver superior sound quality and robust performance. This versatile amplifier is packed with advanced features to meet the demands of both professional audio setups and high-fidelity home systems.

Whether you’re setting up a professional audio system or enhancing your home theater, the Focus Audio FDSA23 DSP Amplifier provides unmatched flexibility, control, and sound quality. Experience the difference with Focus Audio – where audio excellence meets innovation.

ZENITH Series DSP Amplifier with Dante



FDSA-23 DSP



Features:

  • DANTE network audio optional
  • Network TCP/IP control, which can manage multiple devices
  • Constant voltage and constant resistance support: 100V, 70V, 8 ohms, 4 ohms
  • Remote switch, Power On/Standby setting
  • Adopt color LCD display
  • Built-in DSP digital processor with FIR Technology
  • Support multiple connection methods: USB, TCP/IP, RS232, RS485
  • Real-time remote monitoring of amplifier working status
  • The amplifier can be identified by software on site
  • Support balanced XLR input and unbalanced RCA input
  • Support stereo, bridge, mono, free matrix mode, one-key switch
  • The input sensitivity can be adjusted in two steps: 0dBu/6dBu, set by software or color LCD screen
  • Software control, can control media matrix, professional processor at the same time
  • Wide voltage operation 110-240V AC

Technical Parameters

FDSA-23 DSP TECHNICAL PARAMETERS:

  • Input Volume: mute, phase, level detection
  • Input / Output: EQ 5-band parametric EQ / 9-band parametric equalization
  • Input Noise Gate: start control time 1~2895ms, release time 1~2895ms, start control level -120dBu~-60dBu
  • DSP Matrix: 2 x 2 matrix
  • Output Delay: 2 x 16ms
  • Output Compressor: soft knee, attack level, attack time, compression ratio, release time
  • Output Volume: mute, phase, level detection
  • DSP Presets: 30 preset positions
  • Control Mode: TCP/IP, USB, RS485, RS232
  • Network Specifications: TCP/IP, 1000base-T / 100base-TX, RJ45
  • Number of Channels: 2
  • Power: 2 x 300W@8Ω / 2 x 500W@4Ω
  • Bridge Power: 1 x 1000W@8Ω
  • Minimum Output Impedance: 4Ω per channel, 8Ω in bridge mode
  • Input Interface: balanced input 2 x XLR; single-ended input 2 x RCA
  • Output Interface: 2 x Spoken; binding post
  • Cooling: Dual fan intelligent control
  • Gain: 6dB Sensitivity: 30dB (29.5 times); 0dB sensitivity: 36dB (31.1 times)
  • Maximum Input Level: 6dB Sensitivity: 16dBu (4.9V)
  • SNR: 6dB Sensitivity 94dB; 0dB Sensitivity: 94dB
  • Frequency Response: 20Hz ~ 20kHz (±0.5dB)@1W, 8Ω
  • THD+N: <0.1%@1W to full power
  • Sampling Rate: 48K/ 24bit
  • Channel Isolation: <-70dB
  • Working Mode: Stereo, Bridge, Mono, Free Matrix
  • Remote Control: remote start, standby, DSP monitoring
  • Amplifier Monitoring: Temperature, Power, Voltage, Current
  • Constant Voltage & Resistance: 100V, 70V, 8 ohms, 4 ohms
  • DANTE (optional): 2 channel DANTE
  • Display: 240 x 240 pixels, IPS hard screen, color
  • Source Topology: XLR Line-out
  • Protections: Audio limiter, high temperature, DC, high frequency, short circuit, back EMF, peak current limiter, inrush current limiter, power-on delay, power circuit breaker protection, power supply over/under voltage protection
  • PC Software: software can control media matrix, audio processor, DSP power amplifier, active DSP module
  • Size & Weight: 483 x 300 x 44.5mm / 3kg
  • Power Supply: Voltage input (110-240V AC)
